MODEL 138

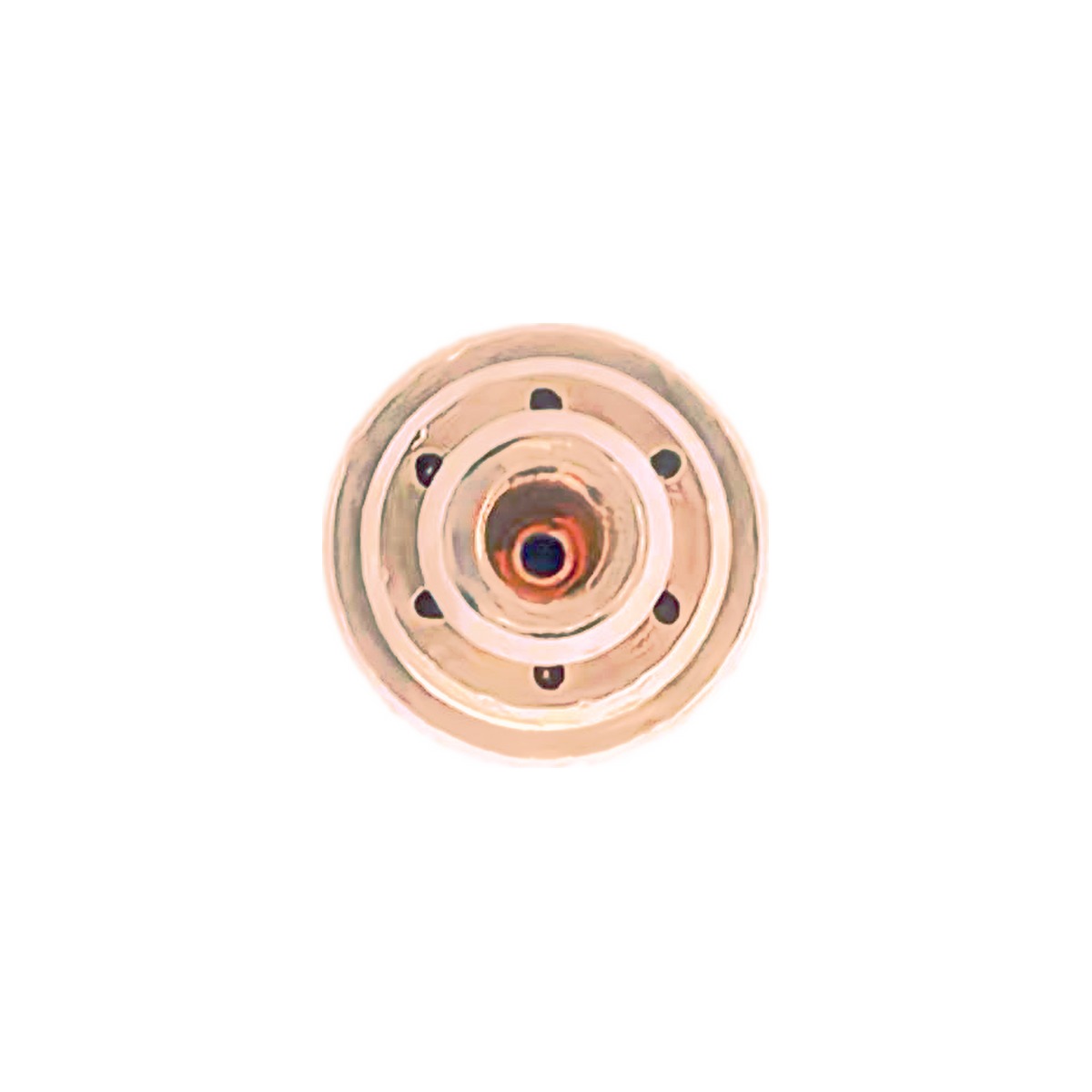

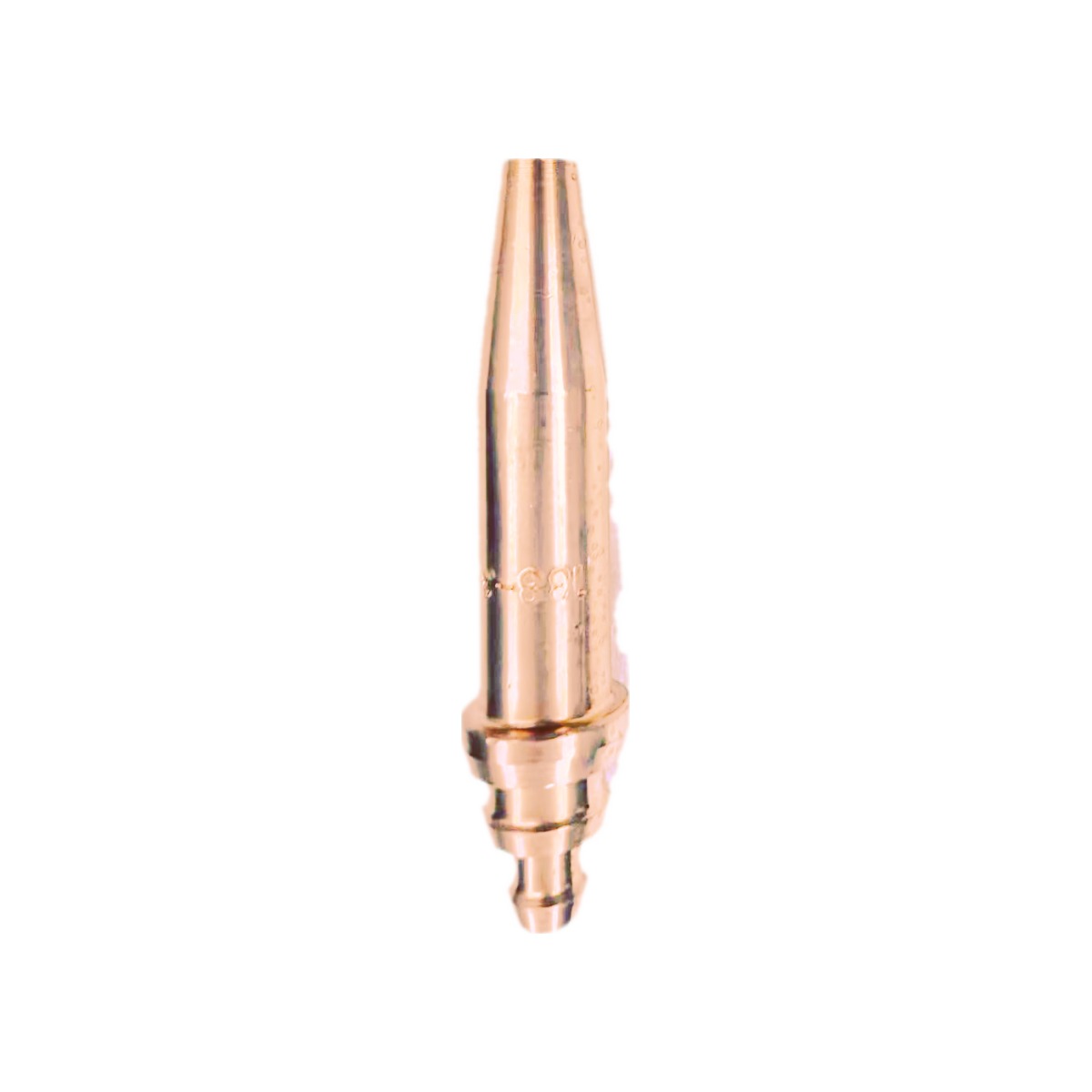

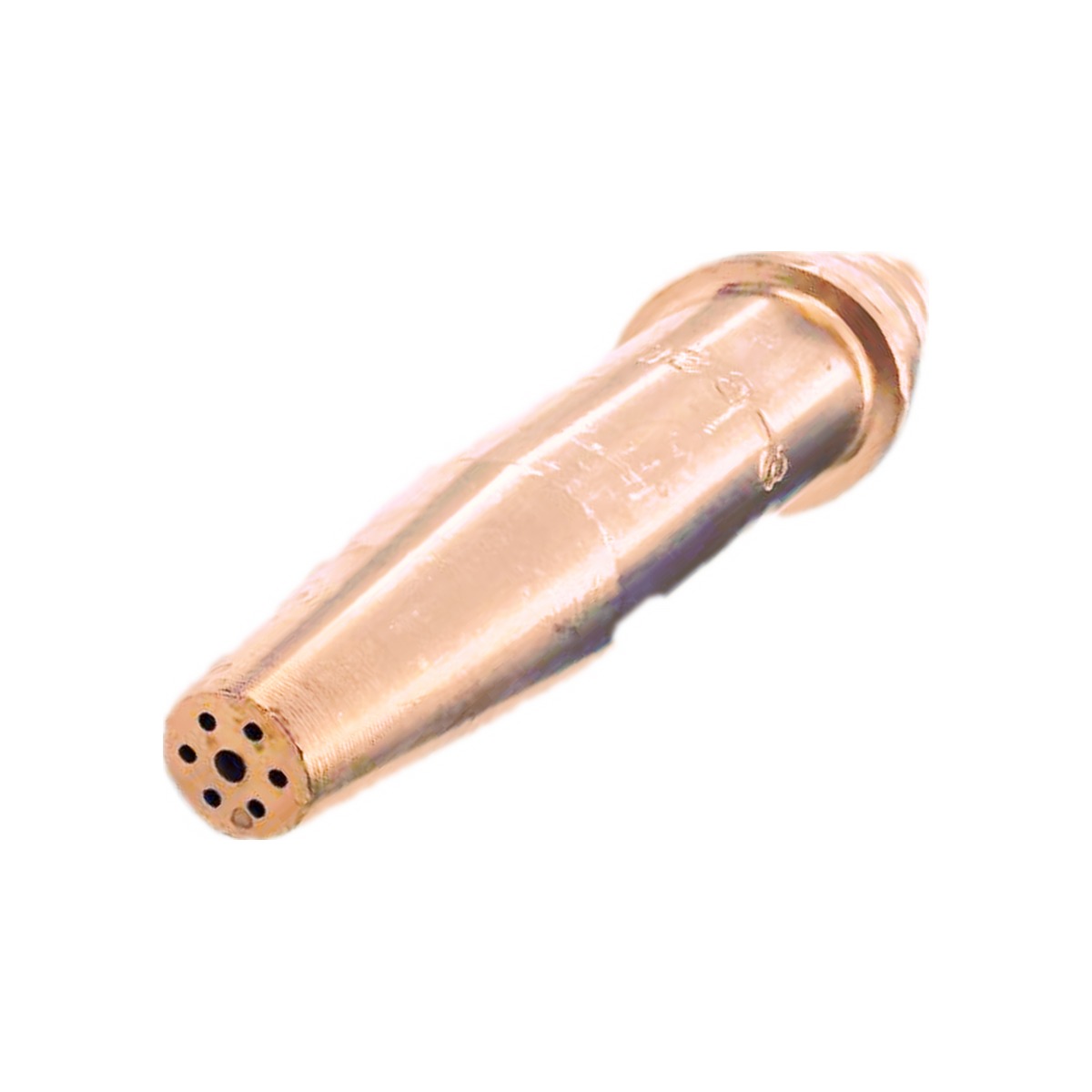

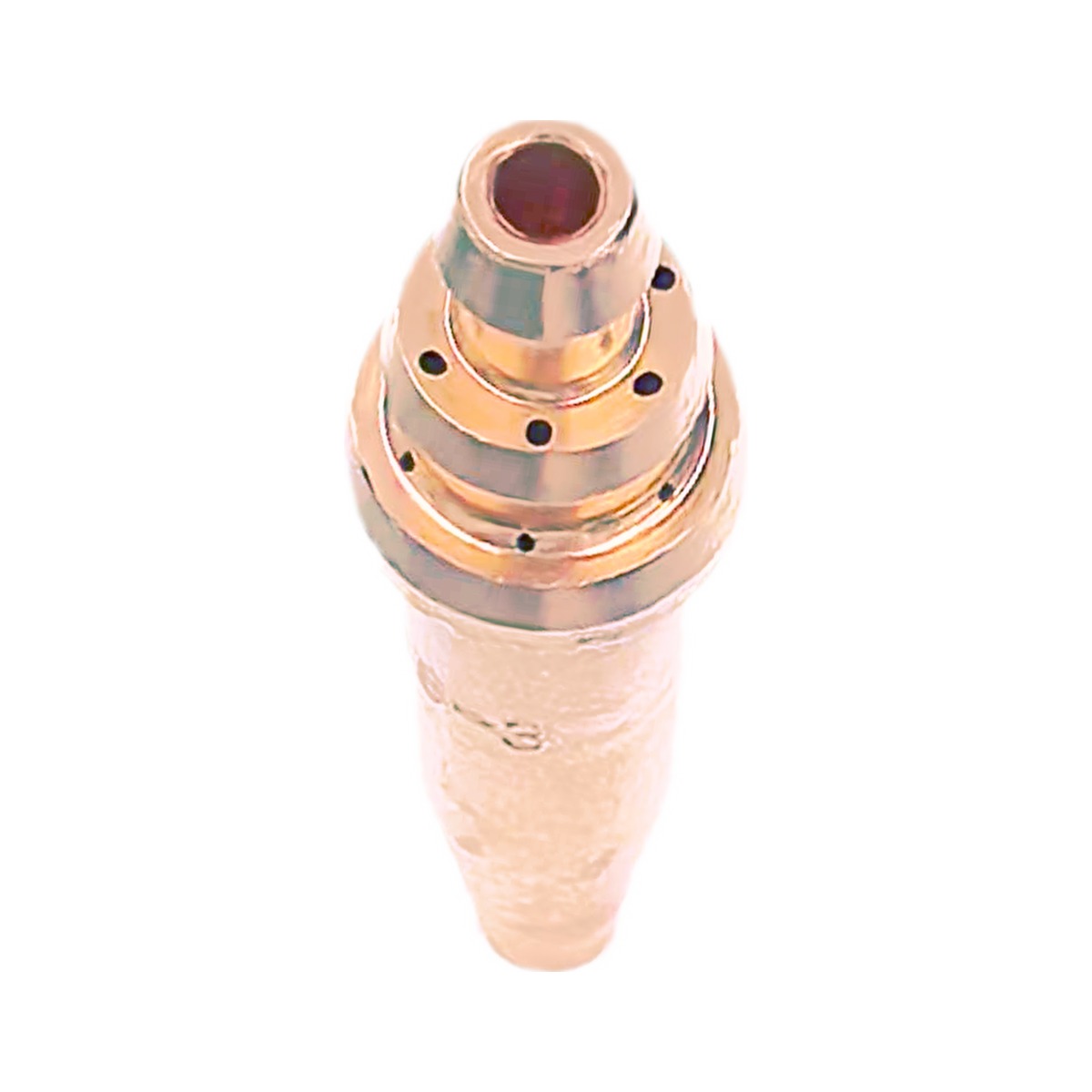

138 Oxy-Acetylene Cutting Tip · Airco Style
The 138 series is a one-piece oxy-acetylene cutting tip built for Airco / CONCOA style torches. A solid copper body and light-preheat design keep the preheat flame tight and concentrated, which suits hand cutting, machine cutting and fine contour work on clean carbon steel. Eight sizes from 00 to 6 cover cutting-oxygen orifices of 0.8 to 2.4 mm and plate from 1 to 150 mm, so the tip can be matched to the thickness on the job.
- Fits Airco / CONCOA style torch seats
- One-piece solid copper body for steady heat transfer
- Light preheat with a concentrated flame for clean, narrow kerfs
- Eight sizes (00–6) cover 1–150 mm plate
- Cutting oxygen orifice from 0.8 mm to 2.4 mm
- Hand and machine cutting, including fine contour work on clean carbon steel
| Model | 138 |
|---|
| Series | 138 |
|---|
| Torch compatibility | Airco / CONCOA style |
|---|
| Fuel gas | Acetylene |
|---|
| Oxidizer | Oxygen |
|---|
| Construction | One-piece |
|---|
| Material | Copper |
|---|
| Preheat | Light preheat |
|---|
| Sizes | 00 · 0 · 1 · 2 · 3 · 4 · 5 · 6 |
|---|
| Cutting oxygen orifice | 0.8 – 2.4 mm |
|---|
| Cutting range | 1 – 150 mm |
|---|
| Cutting mode | Hand & machine cutting |
|---|
| Suited material | Clean carbon steel |
|---|
| Typical use | General & contour cutting |
|---|
| Supply | Wholesale · OEM · Distributor |
|---|
Size Selection Chart
| Size | Cutting oxygen orifice | Recommended thickness |
|---|
| 00 | 0.8 mm | 1–3 mm |
| 0 | 1.0 mm | 3–6 mm |
| 1 | 1.2 mm | 6–10 mm |
| 2 | 1.4 mm | 10–20 mm |
| 3 | 1.6 mm | 20–40 mm |
| 4 | 1.8 mm | 40–60 mm |
| 5 | 2.1 mm | 60–100 mm |
| 6 | 2.4 mm | 100–150 mm |
